Kaise Electric Vehicle

Descripción

Computerised grid design to achieve 99.99% purity with a high strength Pb-Ca alloy
Groups of fixed plates to ensure greater resistance to vibrations
Plates formed in tanks to ensure uniform plate formation
Can operate over a wide temperature range (-40ºC to 60ºC)
Industry leader in terms of size and performance
Double insulation with microporous fiberglass separators
Flame suppression system with valves for total safety
Low self-discharge (1% -3% / month)
Multi-function terminal
Handles for easy transportation
Classified as a “non-spillable battery” (UN2800) for transportation
Complies with DOT HMR49 standards, non-hazardous materials

*Para ver el contenido completo, deslice la pantalla horizontalmente*.

MODELO	TIPO TERMINAL	TENSIÓN V	CAPACIDAD NOMINAL Ah	PESO Kg	LONGITUD mm	PROFUNDIDAD mm	ALTURA mm	ALTURA TOTAL mm

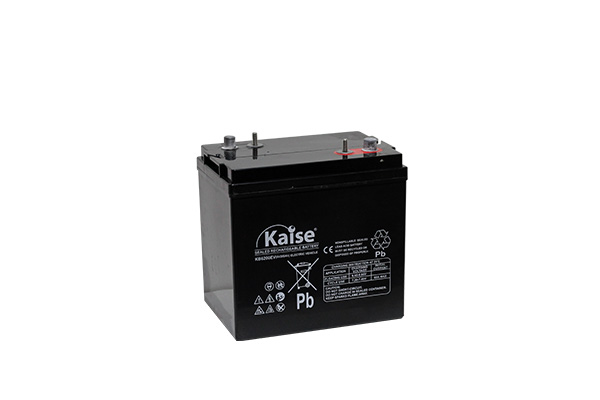

KB6200EV	M8	6	200	32.5	260	180	268	273
KB6220EV	M8	6	220	35.0	260	180	268	273
KB8170EV	M8	8	170	36.5	260	180	280	280

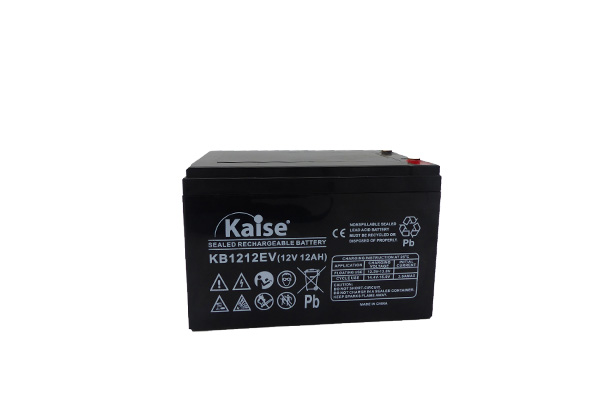

KB1212EV	M5	12	13.3	4.35	151	99	98	98.5
KB1220EV	M5	12	23	6.9	181	77	170	170
KB1255EV	M6	12	52.3	14.1	223	136	177	177
KB1280EV	M6	12	80	26.5	260	168	210	210
KB12110EV	M8	12	106	33.2	330	172	214	214
KB12120EV	M8	12	120	40.0	407	175	212	216
KB12135EV	M8	12	135	45.0	336	172	279	279
KB12150EV	M8	12	150	50.0	481	170	239	239
